Product Introduction

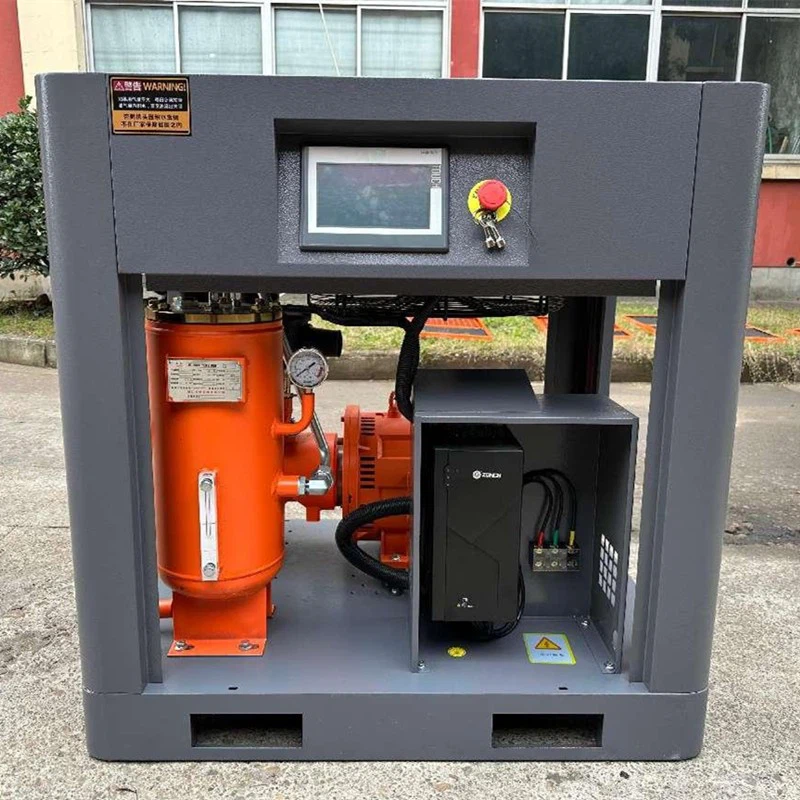

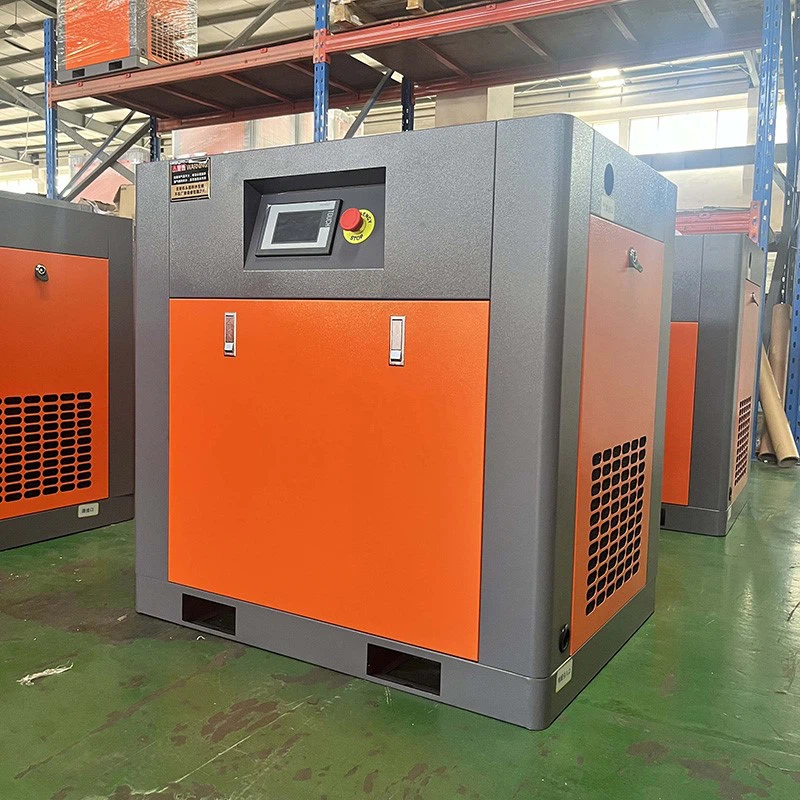

The core power of this electric permanent magnet screw compressor is an 11kW (15HP) motor, which adopts advanced screw host and direct drive technology. It has a compact structure, efficient transmission, and extremely low energy loss. Its displacement reaches 1.8 m ³/min, and it stably outputs at a motor speed of 3000 r/min, with abundant power. It specifically adopts a variable frequency starting method, which can significantly reduce the impact of starting current on the power grid, extend the life of the motor, and run more smoothly and energy-saving. This screw type air compressor 15hp is designed to be sturdy and specifically designed for continuous industrial conditions, making it an ideal air source equipment for small and medium-sized factories, sheet metal spraying, pneumatic tools, and other fields.
specification
|
Model: ZD15LV-8 |
|
|
Rated Power |
11 kW/15HP |
|
Name |
15hp variable frequency air screw compressor |
|
Motor |
Anchen (IP23) |
|
Frequency conversion |
ZONCN |
|
Flow Rate |
1.8 m3/min |
|
Air pressure |
0.8 MPa |
|
Motor Speed |
3000 r/min |
|
Motor Protection |
IP 23/F |
|
Drive Method |
Direct Drive |
|
Noise Level |
≤76 dB |
|
Cooling Method |
Air cooling |
|
Lubricating Oil Volume |
10L |
|
Start Mode |
Frequency Conversion Start |
|
Compressed air outlet temperature after cooling |
Temperature +12℃ |
|
Dimensions (L*W*H) |
1080*750*1020mm |
|
Weight |
220KG |
| Voltage | 380V/50Hz |
| Output pipe siz | G3/4 |
applications
Instrument gas supply in the chemical industry
This permanent magnet screw compressor can provide continuous, stable, and dry oil-free instrument air supply for pneumatic valves, actuators, and control instruments in chemical production processes to ensure process safety.
01
Automobile repair workshop
Providing a stable air source for various pneumatic tools such as cannons, lifts, and spray guns, used for tire disassembly, vehicle lifting, component cleaning, and spraying operations, is the core power guarantee of the workshop.
02
Equipment control in the power industry
The screw type air compressor 15hp provides operational power for pneumatic isolation switches and circuit breakers in power plants or substations, and blow clean insulation equipment to ensure electrical safety
03
Process gas for pharmaceutical industry
The 15hp variable frequency air screw compressor can provide sterile, oil-free clean compressed air for the mixing, drying, tablet pressing, and packaging processes of pharmaceutical equipment, in compliance with strict GMP standards.
04
