Jack Hammer

Jack hammer | pneumatic rock drills & handheld rock drills manufacture



Quzhou Zhongdu Machinery Technology is a professional jack hammer manufacturer and supplier in China, specializing in pneumatic rock drills, air leg rock drills, handheld rock drills, and mining drilling equipment. Our jack hammer series includes YT24, YT27, YT28, YT29A, YO18, Y19A, Y24, YO20 and other models, widely used for mining, quarrying, tunneling, construction, road building, hydraulic projects and geological surveying. Powered by compressed air, our rock drills support wet and dry drilling on various rock conditions, with features of high efficiency, lightweight, low energy consumption, stable performance and long service life. We provide OEM/ODM service, factory direct sale, strict quality inspection and on-time delivery to global markets including Southeast Asia, Central Asia, Africa, Middle East and South America.

Get a Custom Quote for Your Jack Hammers


Categories
Latest Products
Contact Us




Types of Jack Hammer
yo rock drill
01

yO Serious Jack Hammer

1.Hand-held rock drill (handheld rock drill machine), mainly for handheld operation; small air legs can be added, but the design basis is handheld.

2.The body is short and the center of gravity is suitable for two-handed holding; the thrust is provided by manual hand pressure, and a small FT100 air leg can be selected as an auxiliary.

3.Light weight, the impact energy is relatively small, the air consumption is low, and the air compressor requirement is small.

4.Economic hole depth: 1.5–2m, limit: 5m, shallow hole efficiency is high; suitable for medium-hard rocks f=6–12; suitable for downward / inclined downward holes (slope, secondary dissolution of quarrying).

02

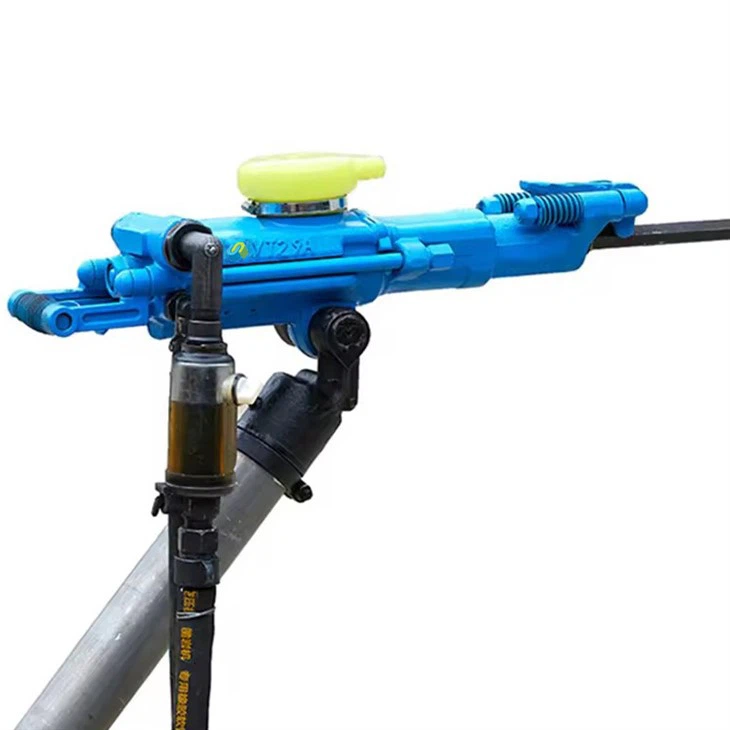

yT Serious Jack Hammer

1.Air leg rock drill (with FT air legs) relies on the air legs to provide continuous thrust, making it suitable for horizontal tunnel excavation.
2.The rear end of the machine is equipped with an air leg connection seat, and standard models include FT160 and other air legs. The air legs automatically provide continuous and stable axial thrust, eliminating the need for manual continuous pressure on the drill machine.
3.It has a greater self-weight, higher impact energy and rotational torque. It consumes more air and requires a larger displacement air compressor. It has stronger continuous hard rock excavation capability.
4.Economic hole depth: 2–4m, maximum 5m; medium-hard to hard rock; f = 8–18; It is proficient in horizontal, inclined and upward anchor bolt holes, and is better for deep hole slag removal and continuous advancement.

yt rock drill

Pneumatic Jack Hammer Model Comparison

Item No. YT24 YT27 YT28 YT29A YO18 YO20 Y24 Y19A
Weight(KG) 24 27 28 29 18 21 24 19
Impact frequency(HZ) ≥31 ≥39 ≥37 ≥37 ≥22 ≥33 ≥65 ≥28
Air consumption(L/S) ≤67 ≤86 ≤81 ≤65 ≤20 ≤33 ≤50 ≤37
Drilling depth(m) Up to 5 Up to 5 Up to 5 Up to 5 Up to 5 Up to 5 Up to 5 Up to 5
Bit diameter(mm) 32-45 32-45 32-45 32-45 32-45 32-45 32-45 32-45
Typical Application Small and medium-sized mines and tunnels Small and medium-sized tunnels and quarries Highway and railway tunnels; Mine; Coal mine, metal mine tunnel excavation Hard rock large-section tunnel; deep anchor bolt/anchor cable holes; quarry Small mines, quarries, and shallow holes on highway slopes Small mines, quarries, and shallow holes on highway slopes Open-pit mining, small tunnels, small mines Small mines, quarries, and shallow holes on highway slopes



Advantages of pneumatic Jack Hammer


High efficiency and durability

Strong impact force, suitable for hard rock working conditions, with a longer service life.

Lightweight and easy to operate

The body is lightweight and the steering is flexible. It can be easily mastered by a single person.

Energy conservation and low consumption

Optimize the aerodynamic structure, reduce air consumption, and lower the usage cost.

Stable and reliable

Core components are meticulously crafted, ensuring stable performance even under harsh conditions.

Maintenance is convenient.

The modular design is easy to disassemble and assemble, saving time and effort for daily maintenance.

Customized services

Support OEM/ODM, suitable for different engineering scenarios.





Jack Hammer & Air Compressor Matching




A pneumatic rock drill requires a stable compressed-air supply to maintain impact performance and drilling efficiency. When selecting a jack hammer, do not check air pressure alone. The compressor should also provide sufficient airflow for the selected model, together with allowance for hose length, pressure loss and other pneumatic equipment.

Before ordering, provide us with the jack hammer model, required drilling depth, hole diameter and available compressor specifications. Our team can help match the rock drill with a suitable air compressor and accessories.

Get Jack Hammer & Compressor Recommendation







Packaging & Shipping



packaging



why choose us


your reliable pneumatic jack hammer supplier in China

rock drill factory

Quzhou Zhongdu Machinery Technology Co., Ltd.



Factory Direct Sales Direct supply from original factory, cut out middle links to offer competitive prices.

One-stop Service We provide full services from product selection to delivery for your convenient procurement.

Certified Quality All products pass ISO9001 certification with rigorous quality inspection standards.

Factory Visit Available We sincerely welcome you to visit our factory and check our production strength.

24/7 Online Support Our team stays online all day long to respond to your questions and demands promptly.

Worry-free After-sales We offer one-year full machine warranty to guarantee your safe and stable use.





FAQ



Q: What is the difference between YO and YT rock drills?

A: YO is hand-held, light for surface shallow holes. YT is air leg type with big thrust for continuous tunneling.

Q: What accessories are needed?

A: Air leg, drill rods, bits, air hose, oiler.

Q: Can hand-held rock drill fit air leg?

A: YO/Y series can equip small air leg, originally designed for hand operation.

Q: Common faults of pneumatic rock drill?

A: Low power or slow rotation, usually caused by insufficient air pressure or lack of lubrication.

Quzhou Zhongdu Machinery Technology Co., Ltd. is one of the most professional jack hammer manufacturers and suppliers in China. We warmly welcome you to wholesale customized jack hammer made in China here from our factory.
