Product Introduction

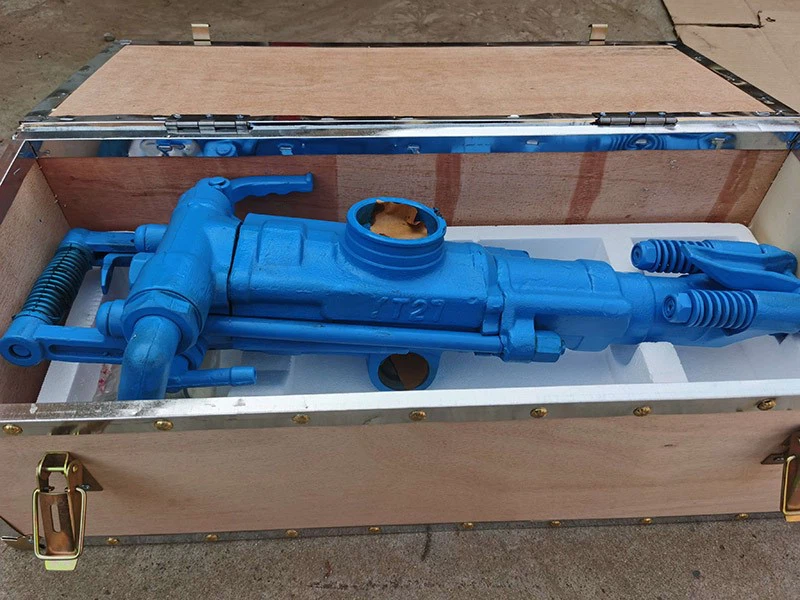

High quality of hand-held yt27 rock drilling machines
The YT27 pneumatic rock drill is an efficient air leg rock drilling machine. It is suitable for blasting rock drilling operations with an explosive force ranging from 8 to 18 Newtons, and can withstand a temperature range of -30°C to 50°C.In addition, yt27 pusher leg rock drill also possesses a relatively strong impact energy of ≥75.5J,it has a powerful blowing and cleaning function for blast holes, which is significantly superior to similar products.
Control valve:control valve is controlled by manipulating,a total of five locations.
pressure regulating valve: pressure regulating valve pneumatic thrust will gradually increase.
Directional control valve: Directional control valve is to manipulate air leg rapid expansion device.
grease injector Control valve: Adjust the volume of oil is convenient, only need to dial the oil valve handle.
YT27 Pnneumatic Rock Drill Technical Specifications
|
Type |
YT27 |
|
Weight |
27kg |
|
External Dimensions (L*W*H) |
668*248*202 (mm) |
|
Cylinder Diameter |
φ80 (mm) |
|
Piston Stroke |
60mm |
|
Impact Energy |
≥75.5 (J) |
|
Air consumption |
≤83.3(L/S) |
|
Working Temperature |
-30 ~ 50 ℃ |
|
Drilling Hole Diameter |
φ34~φ45 (mm) |
|
Drilling Hole Depth |
5 (m) |
|
Air Pipe Inner Diameter |
φ25 (mm) |
|
Water Pipe Inner Diameter |
φ13 (mm) |
|
Working Pressure |
0.63MPa |
|
Impact Frequency |
36.7Hz |
|
Shank Size |
22×108 (mm) |
FT160A and FT160B type Line Oiler Specifications:
|
Type |
FT160A |
FT160B |
|
Weight (kg) |
17 |
16 |
|
Length of Air-leg:(Max.) |
3006 |
2526 |
|
Length of Air-leg:(Min.) |
1668 |
1428 |
|
Length of thrust |
1338 |
1098 |
|
Max. Axial thrust |
2000N |
2000N |
Operating and Maintenance Specifications of YT27 Pneumatic Rock Drill
1. The yt27 rock drilling machines will be coated with a layer of anti-rust oil when it leaves the factory. Before use, it should be cleaned first, and then lubricating oil should be applied before it can be used.
2. When connecting the air pipe network, air should be blown into it to clear the impurities inside to avoid damaging the components during use.
3. Before starting the machine, it is necessary to carefully check whether the assembly of the operating mechanism and components is correct and reliable. Lubricating oil should be added and ensure that the oil quantity is sufficient.
4. When the machine is running, some cooling water should be slightly turned off to remove the residual water droplets in the blasting machine to prevent the parts from rusting.
5. For commonly used machines, regular maintenance and inspection work should be emphasized. A comprehensive inspection can be conducted once a week to remove dirt and replace damaged components.
6. For used machines that need to be stored for a long time, they must be disassembled and cleaned, remove oil stains, and then placed in a cool and dry place.
Our Customers
