Product Introduction
Reliable Compressed Air Anywhere, Under Any Condition

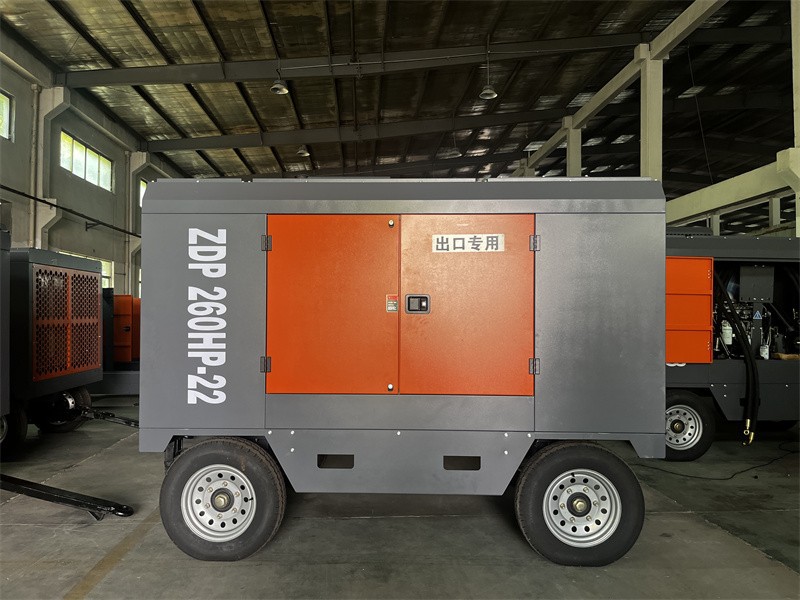

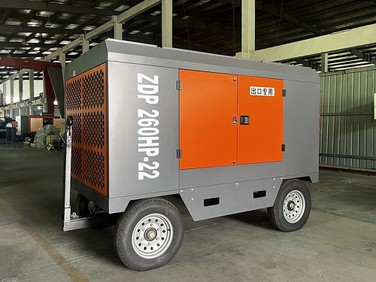

Our ZD-20/20 mobile diesel screw air compressor is engineered to be your most dependable source of high-pressure air in remote and demanding environments. Combining a heavy-duty chassis, a powerful diesel engine, and an efficient two-stage screw air end, it consistently delivers 20 cubic meters per minute (20m³/min) of compressed air at 20 bar pressure. Designed with dust-proof and water-resistant features, it excels in mining, tunneling, bridge building, and emergency rescue operations where electricity is unavailable or unreliable. Experience unmatched fuel efficiency, easy mobility, and minimal maintenance downtime.
Key Specifications
|
Model number |
ZD-20/20 |
|
Air capacity |
20m³/min |
|
Rate Pressure |
20bar |
|
Engine Power |
191 kW (Diesel) |
|
Weight |
3700kg |
|
Dimensions (L*W*H mm) |
3200*2000*2600mm |
|
Compression stage |
2-Stage Screw (Higher Efficiency, Stable Pressure) |
|
Whole Machine walking mode |
4 wheel |
|
Certificate |
ISO9001 |
Core Advantages of Our Diesel Screw Technology
Two-Stage Screw Advantage: Delivers more air per horsepower with lower operating temperatures, leading to better fuel efficiency and longer component life compared to single-stage compressors.
All-Terrain Mobility: The robust towable air compressor design with 4 wheels allows for easy transport between job sites, even over rough ground.
Built for Harsh Environments: The enclosed canopy offers superior dust-proof and water-proof protection, and the high-capacity cooling system ensures operation in high-temperature environments.
Pure Air Output: An advanced oil-gas separation system guarantees low oil carry-over, providing clean air that extends the service life of your valuable pneumatic tools.
Professional Applications
Where the ZD-20/20 Diesel Air Compressor Excels
Underground & Open-Pit Mining Operations
This mining air compressor provides continuous, high-pressure air to power face drilling rigs, pneumatic rock breakers, and ventilation systems. Its rugged build and dust protection are essential for extreme mining conditions.
Remote Bridge and Road Projects
As a mobile high-pressure air source, it easily moves across large sites to operate pile drivers, caisson sinking equipment, and other bridge construction machinery.
Tunnel and Subway Construction
Ideal for tunnel drilling and shotcreting, supplying steady air to jackhammers and spraying equipment. The stable 20-bar output ensures efficient operation of all pneumatic tools for construction.
Emergency and Disaster Relief
IWith self-contained power, it serves as a critical portable air supply for rescue operations, running lifting bags, cutting tools, and dewatering pumps independently of the grid.
after-sales service
Quzhou Zhongdu Machinery Technology Co., Ltd.
Your reliable screw air compressor supplier
Packaging and Logistics Transportation: To ensure the safety of your rotary type air compressor during long-distance transportation, we use reinforced wooden boxes or iron frames for meticulous packaging. Additionally, we offer professional logistics services. We can customize transportation plans according to your needs and provide a fully visible tracking service from the departure point until the equipment arrives at your construction site, allowing you to feel completely at ease.
Training and Usage Guidance: You can visit our factory in person. We can provide face-to-face on-site operation training, covering equipment start-up and shutdown procedures, daily operation monitoring, parameter setting, routine maintenance methods, and common fault identification and resolution. This ensures that your operators can master the use of the equipment proficiently and maximize its efficiency.
Maintenance and Repair Support: We have established a rapid response maintenance system. In case of equipment failure, the after-sales service team will conduct remote diagnosis immediately and, depending on the situation, arrange experienced engineers to go to the site for handling. At the same time, we offer comprehensive regular maintenance plans, using genuine consumables and components, effectively preventing failures and extending the service life of the equipment.
Part supply guarantee: We have a well-established central parts warehouse and regional inventory network to ensure adequate reserves of core and regular parts such as screw assemblies, engine components, and controllers. We promise to provide genuine original factory parts and establish a rapid supply channel to minimize downtime caused by waiting for parts.
FAQ
Q: What is the average fuel consumption of the ZD-20/20?
A: Under typical load (around 70%), it consumes approximately XX liters per hour, making it one of the most fuel-efficient models in its class. Exact consumption varies with load and altitude.
Q: How often does it require maintenance in continuous mining operations?
A: We recommend following the preventative maintenance schedule in the manual. Key intervals include engine oil changes every 500 hours and air end inspection every 2000 hours. Our design simplifies routine checks.
Q: Can it operate in high-altitude or very cold environments?
A: Yes. The engine and control system are configured to compensate for altitude. For low-temperature starting, optional cold-start kits (glow plugs, battery heaters) are available.
Q: Is training provided for operators and maintenance staff?
A: Absolutely. We provide comprehensive operation and maintenance training, either at your site or in our factory, covering startup, daily checks, troubleshooting, and safety procedures.
