The Decision Most Buyers Get Wrong
Most procurement managers searching for an 89mm DTH drill pipe ask the same first question: "What's your price per meter?"
It's the wrong question - not because price doesn't matter, but because a drill pipe that saves you $8 per meter and then fails at 120 meters of depth costs you far more than the difference. Downtime in mining and water well projects doesn't pause for budget reviews.
The right questions are: Is 89mm the correct diameter for this hole? Does this pipe's wall thickness match my rock formation? Will the thread type connect cleanly with the DTH hammer I'm already running?

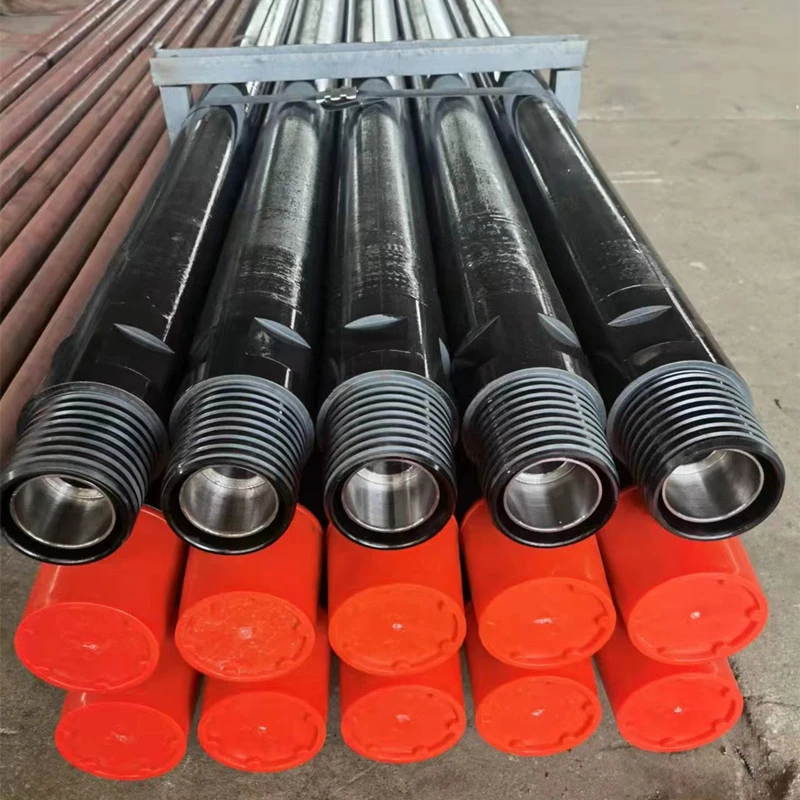

This guide answers all of them - and then shows you exactly what the ZD-89 DTH 89mm Drilling Rig Rod Pipe from Moderate Machine delivers on each count.
Section 1: Is 89mm the Right Diameter for Your Project?
Before any product discussion, get the sizing decision right.
In DTH (Down-The-Hole) drilling, the drill pipe diameter must be matched to the DTH hammer bore and the intended hole diameter. The relationship is straightforward: a smaller hammer needs a smaller drill pipe, and the pipe's outer diameter determines the annular space through which compressed air returns cuttings to the surface.
The standard DTH drill pipe size range runs: 50mm → 60mm → 76mm → 89mm → 102mm → 114mm → 127mm → 140mm
The 89mm pipe sits in the mid-range, and this is not a trivial position. It is the most commonly specified diameter for the following reasons:
89mm is the right choice when your project involves:
- Water well drilling with target depths of 80–300 meters in medium to hard rock
- Open-pit mining blast hole patterns requiring 100–120mm finished hole diameter
- Geothermal exploration boreholes
- Quarry and aggregate production where 3.5-inch drill string is the site standard
- Foundation anchoring and ground reinforcement in rock formations above f6 hardness
89mm is likely NOT the right choice when:
- You are drilling soft soil or shallow boreholes under 50m (76mm is sufficient and more economical)
- Your project requires a finished hole above 140mm diameter (step up to 102mm or 114mm pipe)
- Your rig's rotary head is rated below 2,000 Nm torque (check your rig spec sheet first)
The annular space logic matters practically: with an 89mm pipe in a 100mm borehole, you have approximately 5.5mm of clearance on each side. This is tight enough to maintain good air return velocity for cuttings evacuation, without over-restricting flow. It's a diameter that has been field-proven across five decades of DTH drilling globally.
Section 2: ZD-89 Specs Decoded - What Each Parameter Means for Your Purchase
Here is how to read the ZD-89's technical specifications as a buyer, not as an engineer.
Outer Diameter: 89mm (3.5 inches)
This is your nominal pipe size. It directly determines which DTH hammer sub it connects to. The 89mm OD is compatible with standard 3.5" API-threaded hammer tops across all major DTH hammer series in this bore range - including CIR90, DHD350, QL50/60, and their equivalents.

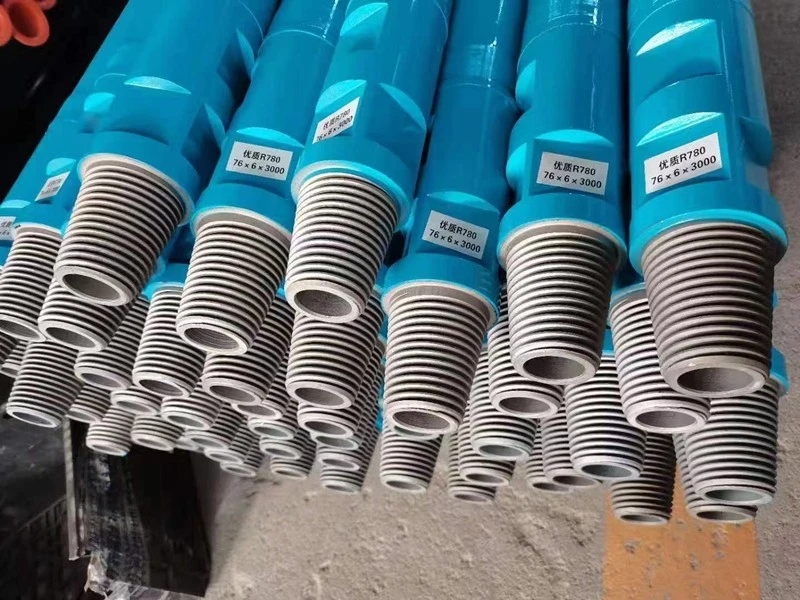

Thread Type: API 2 3/8" REG
This is the industry-standard connection for 89mm DTH pipes. API REG (Regular) threads are defined by the American Petroleum Institute and are universally recognized. This means:
- Your ZD-89 pipe connects directly to any API-standard DTH hammer sub in the 3.5" class
- You can mix pipe lengths from different production batches without thread mismatch
- Replacement pipes from any API-standard supplier are dimensionally interchangeable
API REG vs. API IF: Some buyers ask about IF (Internal Flush) threads. IF threads have a different geometry optimized for higher-pressure fluid circulation, primarily used in oil & gas rotary drilling. For DTH air drilling in mining and water well applications, API REG is the correct and most widely available choice.
Wall Thickness: Selectable (Contact for Options)
Wall thickness is the specification buyers most often underestimate. Here is the practical decision logic:
| Formation Type | Recommended Wall Thickness | Reasoning |
|---|---|---|
| Soft to medium rock (f4–f6) | 5.5–6.5mm | Standard strength sufficient; saves weight on long strings |
| Medium-hard rock (f6–f8) | 7–8mm | Higher torsional loads and impact stress from hammer rebound |
| Hard and abrasive rock (f8+) | 8.5–10mm | Maximum resistance to fatigue cracking at tool joints |
Buying the thinnest wall to reduce cost in hard rock is one of the most common procurement mistakes. Fatigue cracks develop at the friction-welded joint zone first - and in hard rock, they develop faster than buyers expect.
Available Lengths: 1,000mm to 6,000mm
Pipe length selection involves two practical constraints that pure technical specs don't capture:
Shipping constraint: A 6-meter pipe requires a flat-rack or open-top container, which adds freight cost and complexity. For buyers importing by LCL or standard container, lengths of 3,000–4,000mm are the most logistically practical. Moderate Machine can produce custom lengths - confirm your container type before finalizing the order.
Drilling depth constraint: Every pipe connection is a potential failure point. Fewer connections mean a cleaner drill string. If your rig allows 6m pipe handling, use 6m pipes. If your rig's mast height caps you at 3m additions, order 3m.
Material Grade
The ZD-89 is produced from high-grade alloy steel with full-length heat treatment. The tool joint material undergoes separate quenching and tempering to achieve surface hardness that resists thread galling during repeated make-up and break-out operations. Thread surfaces receive nitriding treatment, extending service life compared to untreated threads.
For buyers comparing suppliers: always ask for the mill certificate on the pipe body steel (look for R780 or S135 equivalent grades for demanding applications) and the hardness test result on the tool joint. Any reputable supplier should provide both without hesitation.
Section 3: The System Matching Advantage - Where Most Pipe Suppliers Stop Short
Here is the reality of DTH drill pipe procurement that individual pipe suppliers rarely discuss: a drill pipe does not perform in isolation.
Its actual service life and drilling efficiency are determined by the system it operates in - the DTH hammer's impact energy, the drill rig's rotation speed and pull-down force, and the air compressor's delivery pressure and volume.
Most pipe-only suppliers sell you a pipe and leave system matching entirely to you.
Moderate Machine is a system supplier. Our product range covers the complete DTH drilling chain:
- DTH Drilling Rigs: KH612 Crawler DTH Drill Rig, HT500 Portable Diesel Crawler Rotary Drilling Rig, KH712 Borehole DTH Machine - all configured for 89mm and 76mm drill string systems
- DTH Hammers: CIR series (low-pressure) and QL series (medium-pressure), sized for 89mm bore class
- Air Compressors: ZD series diesel screw air compressors matched to the air volume and pressure requirements of 89mm DTH hammer operation
- DTH Drill Pipe: The ZD-89, designed and tested in combination with our rigs and hammers - not specified in a vacuum
What this means for a B2B buyer:
If you are sourcing a complete drilling package - rig, compressor, pipes, and bits - from Moderate Machine, the system is matched at the factory level. The KH612 crawler rig, for example, runs its standard 89mm and 76mm DTH drill string with CIR/QL series hammers and is paired with ZD-series compressors sized for the air demand. You are not combining specifications from three different suppliers and hoping for compatibility.
If you already own a rig and are sourcing replacement pipe, tell us your rig model, hammer series, and operating pressure. We will confirm ZD-89 compatibility before you commit to an order.
Section 4: 5 Red Flags to Watch When Buying DTH Drill Pipe from China
Moderate Machine sells globally across 50+ countries - which means we know exactly what substandard pipe looks like when our customers have been burned by it before switching to us. These are the warning signs:
1. No mill certificate for pipe body steel
The seller cannot tell you the steel grade by name, or provides a certificate that lists "high-quality carbon steel" without a standard designation. R780, S135, G105, N80 are real grades with traceable metallurgical properties. Generic descriptions are not.
2. Thread hardness below 28 HRC
API REG threads in DTH service should be through-hardened and finished to at least HRC 28–32. Below this range, threads wear rapidly during make-up operations, especially under the torque loads of hard rock drilling. Ask for the hardness test report.
3. No post-weld heat treatment at the friction weld zone
The friction-welded joint connecting the tool joint to the pipe body is the highest-stress point in the string. Welding generates residual stress that must be relieved by post-weld tempering. Without it, the joint is brittle under cyclic loading. Ask specifically: "Do your pipes undergo post-weld heat treatment?" If the answer is vague, treat it as a no.
4. Wall thickness variation exceeding 5%
Pipe body wall thickness should be uniform around the circumference. Cheap pipes produced from substandard seamless tube show wall thickness variation of 8–15%, creating weak spots that initiate fatigue cracks under drilling vibration. Request an ultrasonic wall thickness test result.
5. No export documentation package
Any professional Chinese manufacturer exporting B2B should provide without exception: commercial invoice, packing list, bill of lading, certificate of conformance, and material certificates. If a supplier hesitates on any of these, the post-shipment support will be equally difficult.
Section 5: Customization - When the Standard Spec Isn't Enough
The ZD-89 is available in standard configurations for most applications, but Moderate Machine supports customization across the following parameters:
Length: Any length from 1,000mm to 6,000mm. Non-standard lengths (e.g., 4,500mm for specific mast heights) are available with standard lead times.
Thread type: While API 2 3/8" REG is the default, alternative thread forms including API IF and other connections can be produced to customer specification. Provide your hammer sub thread drawing for confirmation.
Wall thickness: Specify your formation hardness and expected hole depth, and we will recommend - or customize - the appropriate wall thickness for your operating conditions.
Steel grade and surface treatment: For particularly corrosive downhole environments (saline water, acidic formations), enhanced surface treatment options are available. Discuss your site conditions with our technical team.
Minimum Order Quantity: Contact us for MOQ details by configuration. Trial orders for evaluation are accommodated.
Lead Time: Standard configurations ship in approximately 20–30 days from order confirmation. Custom specifications may extend this timeline - confirm during inquiry.

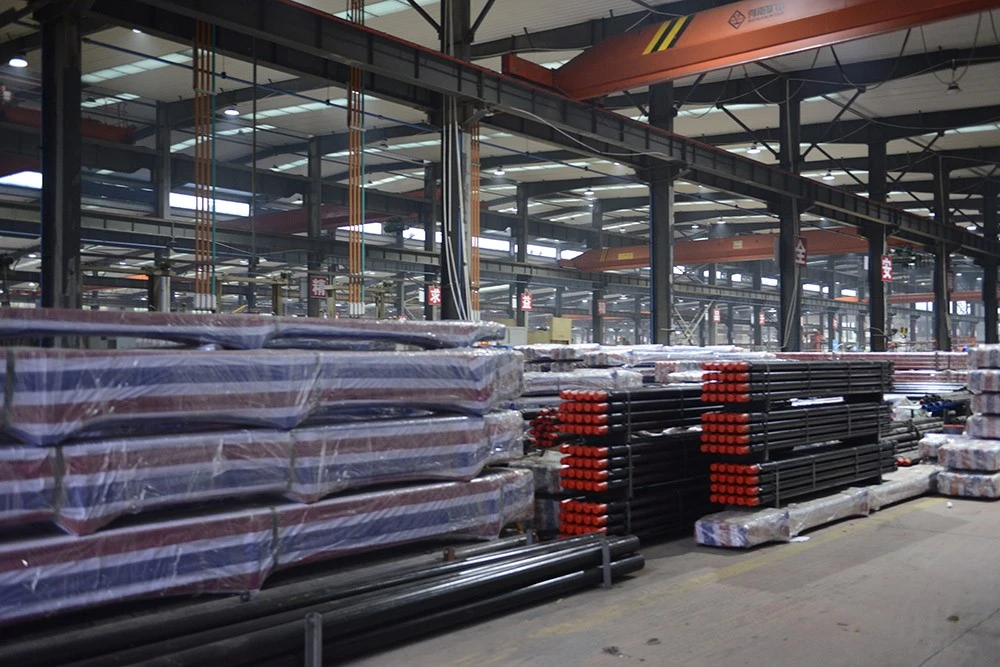

Packaging and Shipping: FCL or LCL available. Export packing in carton or wooden frame protection. Dispatch from Ningbo or Shanghai port.
Section 6: FAQ - What B2B Buyers Ask Before Ordering
Q: Is the ZD-89 compatible with Atlas Copco and Sandvik DTH hammer subs?
A: Yes, for hammer models using standard API 2 3/8" REG thread in the 89mm bore class. Confirm your specific hammer sub thread designation before ordering.
Q: What air compressor pressure is required to operate 89mm DTH pipe effectively?
A: Standard DTH hammer operation in the 89mm class typically requires 8–25 bar working pressure depending on the hammer series (CIR/low-pressure vs. QL/medium-pressure). Our ZD-series compressors are matched to these requirements. Contact us with your hammer model for specific air demand figures.
Q: Can we get material certificates and test reports with our order?
A: Yes. Certificate of conformance, mill certificate for pipe body steel, and thread inspection records are provided as standard with every export order.
Q: What is the warranty on ZD-89 drill pipe?
A: One year warranty covering manufacturing defects. Normal wear from drilling operations is excluded, as is damage from improper torque application or incompatible hammer operation.
Q: Do you accept small trial orders before a bulk commitment?
A: Yes. We understand that procurement managers need to verify fit and quality before committing to volume. Contact us to discuss trial order arrangements.
Q: What payment terms are available?
A: T/T is the standard payment method. Contact our sales team for specific terms based on order volume.
Q: Can we visit the factory?
A: Yes. Factory visits are welcome. Contact us to arrange in advance. Our facility is located in Quzhou, Zhejiang Province - approximately 2.5 hours from Hangzhou by high-speed rail.
The Right Pipe for the Right System
The ZD-89 89mm DTH drill pipe is not the lowest-priced pipe in the market. It is built to perform over a meaningful service life in real mining and water well drilling conditions - with documented material specs, proper heat treatment at every critical joint, and thread geometry that holds tolerance through thousands of make-up cycles.
More importantly, it is designed as part of a drilling system - not as an isolated component.
If your project requires an 89mm drill string, or if you are specifying a complete DTH drilling package from rig to compressor to tooling, we are equipped to quote the full system or supply the pipe alone.
