UST-900L hybrid solar light towers led mobile lighting tower for mining

UST-900L hybrid solar light towers led mobile lighting tower for mining

Portable solar lighthouse, equipped with a towing frame for flexible relocation, does not require an external power source. It is powered by efficient solar energy, operates at zero electricity cost, and has a wide illumination range. It is an ideal lighting solution for emergency rescue, night construction, and temporary work areas.

Send Inquiry

Description

features of led mobile lighting tower

This solar hybrid lighting tower is a lighting solution that combines high efficiency, reliability and strong adaptability. It is equipped with a 1500W high-power solar panel, and the panel angle can be manually adjusted within the range of 30° to 45°, effectively improving the light energy conversion efficiency. Furthermore,It is equipped with 4 100-watt LED lights, with a total brightness of up to 68,000 lumens, and its lighting coverage area can reach approximately 1,481 square meters. The mining lighting tower has excellent environmental adaptability and can operate stably within an extreme temperature range of -40°C to 70°C. Its "hybrid" system is equipped with a backup power supply, ensuring continuous power supply even in rainy weather, and is widely applicable in remote construction sites, squares and emergency places without grid power support.

Specifications

Model No.	UST-900L
Solar Panel	1500W
Panel Lifting	30°~45°Manual Lifting
LFP Battery	11.77kWh 95% DoC
System Voltage	DC24V
Battery Charger	Yes
LED Lamp	4*100W,68000Lms
LightingArea(5Lux)	1481m
Rotation	350°Electric
Tilt	90°Electric
Controller	60AMPPT
Mast & Height	5 Sections 7M
Mast Lifting	Manual Winch
Trailer Standard	US/AU/EU
Hitch	2" Ball / 3" Ring
Brake	Electric
Axle	Single
Tire	15 inch
Outriggers	4x
Lifting Ring	4x
Forklift Holes	2x
Working Temp	-20℃-60℃
Charging Time	7.9 hours
Running Time	28 hours
Dimension(mm)	355016502800
Weight	1150kg
QTY in 20'/40'	3 units / 7 units

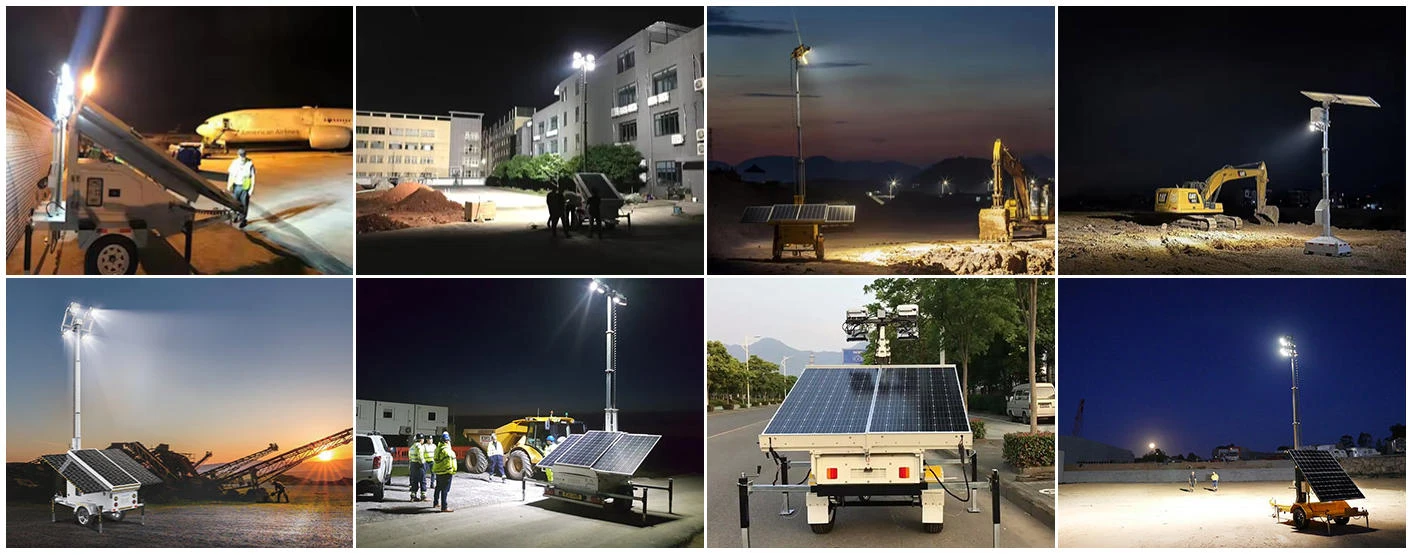

applications

application

light tower solutions

Hybrid Light Tower for Mining,Construction sites,Port terminals, etc.

Tunnel construction approach area

Outside the tunnel entrance, this solar hybrid lighting tower provides transitional lighting for equipment parking, material storage, and vehicle entry and exit, complementing the lighting system inside the tunnel to ensure the safety and smoothness of construction logistics.

Safety monitoring of reservoir dams

Installed on the dam body or its surroundings, solar

mining lighting tower provides long-term and uninterrupted lighting for night safety inspections, water level monitoring and emergency rescue operations. The hybrid power system ensures power reliability during the rainy season.

Nighttime construction at the construction site

The led mobile lighting tower provide large-area, glare-free, high-brightness lighting for continuous operations such as large-scale earthwork and structural pouring, ensuring construction safety and progress, and avoiding the complexity and danger of laying cables.

Railway and road maintenance and repair

When conducting night-time maintenance on tracks or sections far from the power grid, provide mobile, independent and powerful lighting to ensure the safety of the workers and serve as a warning light tower for passing vehicles.

Why choose us?

As a professional solar hybrid lighting tower manufacturer with ISO9001 international quality certification, we offer you three core advantages: Firstly, the quality is reliable, with an international standard production line ensuring the stability and durability of the products; Secondly, it is flexible in customization, covering all aspects from the light source to the structure to fully meet the personalized scene requirements; Thirdly, it is worry-free, providing a one-stop service from on-site factory visits, scheme design to installation and maintenance, allowing you to make purchases with zero risks and enjoy guaranteed after-sales service.
